Initial part of the post can be read here where in infrastructure setup preparedness is covered in details.
2. Now lets create Native Zones. Currently no zones exists.
root@SolA:~# zoneadm list -icv
ID NAME STATUS PATH BRAND IP
0 global running / solaris shared
root@SolA:~#
root@SolA:~# zonecfg -z zone1-ngz
Use 'create' to begin configuring a new zone.
zonecfg:zone1-ngz> create
create: Using system default template 'SYSdefault'
zonecfg:zone1-ngz> info
zonename: zone1-ngz
zonepath.template: /system/zones/%{zonename}
zonepath: /system/zones/zone1-ngz
brand: solaris
autoboot: false
autoshutdown: shutdown
bootargs:
file-mac-profile:
pool:
limitpriv:
scheduling-class:
ip-type: exclusive
hostid:
tenant:
fs-allowed:
anet 0:
linkname: net0
lower-link: auto
allowed-address not specified
configure-allowed-address: true
defrouter not specified
allowed-dhcp-cids not specified
link-protection: mac-nospoof
mac-address: auto
mac-prefix not specified
mac-slot not specified
vlan-id not specified
priority not specified
rxrings not specified
txrings not specified
mtu not specified
maxbw not specified
bwshare not specified
rxfanout not specified
vsi-typeid not specified
vsi-vers not specified
vsi-mgrid not specified
etsbw-lcl not specified
cos not specified
pkey not specified
linkmode not specified
evs not specified
vport not specified
zonecfg:zone1-ngz> set zonepath=/zones/zone1-ngz
zonecfg:zone1-ngz> commit
zonecfg:zone1-ngz> exit
root@SolA:~#
root@SolA:~#
root@SolA:~# zoneadm list -icv
ID NAME STATUS PATH BRAND IP
0 global running / solaris shared
- zone1-ngz configured /zones/zone1-ngz solaris excl
root@SolA:~#
root@SolA:~# zoneadm -z zone1-ngz install
The following ZFS file system(s) have been created:
zones/zone1-ngz
Progress being logged to /var/log/zones/zoneadm.20160517T175526Z.zone1-ngz.install
Image: Preparing at /zones/zone1-ngz/root.
Install Log: /system/volatile/install.1779/install_log
AI Manifest: /tmp/manifest.xml.Hka4Cd
SC Profile: /usr/share/auto_install/sc_profiles/enable_sci.xml
Zonename: zone1-ngz
Installation: Starting ...
Creating IPS image
Startup linked: 1/1 done
Installing packages from:
solaris
origin: http://localhost:1008/solaris/643bf6d89d4108a0437f0ed31b1c076a16646bcd/
origin: http://localhost:1008/solaris/fda0d3fcc17d07c03d7117dba5e60cff71f29b30/
DOWNLOAD PKGS FILES XFER (MB) SPEED
Completed 282/282 50044/50044 345.6/345.6 594k/s
PHASE ITEMS
Installing new actions 68177/68177
Updating package state database Done
Updating package cache 0/0
Updating image state Done
Creating fast lookup database Done
Updating package cache 1/1
Installation: Succeeded
Note: Man pages can be obtained by installing pkg:/system/manual
done.
Done: Installation completed in 815.795 seconds.
Next Steps: Boot the zone, then log into the zone console (zlogin -C)
to complete the configuration process.
Log saved in non-global zone as /zones/zone1-ngz/root/var/log/zones/zoneadm.20160517T175526Z.zone1-ngz.install
root@SolA:~#
- Zone creation completed. Poweron the zone and complete the rest of the configuration
root@SolA:~# zoneadm -z zone1-ngz boot
root@SolA:~# zlogin -C zone1-ngz
[Connected to zone 'zone1-ngz' console]

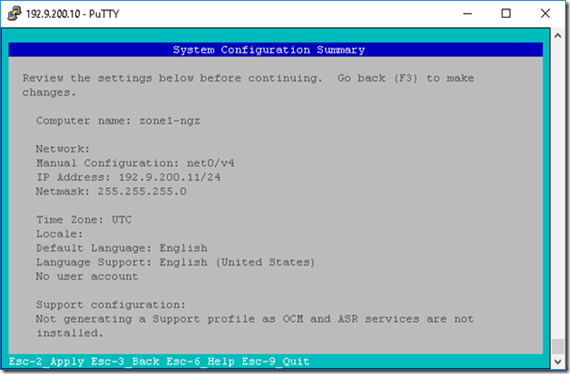

- Select Manual IP Configuration
- Now lets populate some data in this zone, so that we when we migrate, we should see this data to confirm that the migration is successful.
root@zone1-ngz:~# zfs create rpool/data
root@zone1-ngz:~# cp -pr /var/adm/* /rpool/data
root@zone1-ngz:~# groupadd dba
root@zone1-ngz:~# useradd -g dba -d /export/home/oracle oracle
root@zone1-ngz:~# passwd oracle
New Password:
Re-enter new Password:
passwd: password successfully changed for oracle
root@zone1-ngz:~# mkdir /export/home/oracle
root@zone1-ngz:~# chown -R oracle:dba /export/home/oracle/
root@zone1-ngz:~# su - oracle
Oracle Corporation SunOS 5.11 11.3 March 2016
-bash-4.1$ pwd
/export/home/oracle
-bash-4.1$ ls -al
total 6
drwxr-xr-x 2 oracle dba 2 May 17 20:22 .
drwxr-xr-x 3 root root 3 May 17 20:22 ..
-bash-4.1$ cd /rpool/data
-bash-4.1$ ls -al
total 28
drwxr-xr-x 6 root root 11 May 17 20:21 .
drwxr-xr-x 3 root root 3 May 17 20:21 ..
-rw------- 1 uucp bin 0 May 17 18:06 aculog
drwxr-xr-x 2 adm adm 2 May 17 18:06 exacct
-r-------- 1 root root 28 May 17 20:20 lastlog
drwxr-xr-x 2 adm adm 2 May 17 18:06 log
-rw-r--r-- 1 root root 526 May 17 20:00 messages
drwxr-xr-x 2 root sys 2 May 17 18:06 sm.bin
drwxr-xr-x 2 root sys 2 May 17 18:06 streams
-rw-r--r-- 1 root bin 1860 May 17 20:20 utmpx
-rw-r--r-- 1 adm adm 5580 May 17 20:20 wtmpx
-bash-4.1$ logout
root@zone1-ngz:~# pwd
/root
root@zone1-ngz:~# cd /rpool/data
root@zone1-ngz:/rpool/data# >sa
root@zone1-ngz:/rpool/data# >sandeep
root@zone1-ngz:/rpool/data# >sandeep123
root@zone1-ngz:/rpool/data# tar cvf sandeep.tar *
a aculog 0K
a exacct/ 0K
a lastlog 1K
a log/ 0K
a messages 1K
a sa 0K
a sandeep 0K
a sandeep123 0K
a sm.bin/ 0K
a streams/ 0K
a utmpx 2K
a wtmpx 6K
root@zone1-ngz:/rpool/data# pwd
/rpool/data
root@zone1-ngz:/rpool/data# ls -al
total 32
drwxr-xr-x 6 root root 15 May 17 20:23 .
drwxr-xr-x 3 root root 3 May 17 20:21 ..
-rw------- 1 uucp bin 0 May 17 18:06 aculog
drwxr-xr-x 2 adm adm 2 May 17 18:06 exacct
-r-------- 1 root root 28 May 17 20:20 lastlog
drwxr-xr-x 2 adm adm 2 May 17 18:06 log
-rw-r--r-- 1 root root 526 May 17 20:00 messages
-rw-r--r-- 1 root root 0 May 17 20:22 sa
-rw-r--r-- 1 root root 0 May 17 20:22 sandeep
-rw-r--r-- 1 root root 16384 May 17 20:23 sandeep.tar
-rw-r--r-- 1 root root 0 May 17 20:22 sandeep123
drwxr-xr-x 2 root sys 2 May 17 18:06 sm.bin
drwxr-xr-x 2 root sys 2 May 17 18:06 streams
-rw-r--r-- 1 root bin 1860 May 17 20:20 utmpx
-rw-r--r-- 1 adm adm 5580 May 17 20:20 wtmpx
root@zone1-ngz:/rpool/data#
root@zone1-ngz:/rpool/data# cat /etc/passwd
root:x:0:0:Super-User:/root:/usr/bin/bash
daemon:x:1:1::/:
bin:x:2:2::/usr/bin:
sys:x:3:3::/:
adm:x:4:4:Admin:/var/adm:
lp:x:71:8:Line Printer Admin:/:
uucp:x:5:5:uucp Admin:/usr/lib/uucp:
nuucp:x:9:9:uucp Admin:/var/spool/uucppublic:/usr/lib/uucp/uucico
dladm:x:15:65:Datalink Admin:/:
netadm:x:16:65:Network Admin:/:
netcfg:x:17:65:Network Configuration Admin:/:
smmsp:x:25:25:SendMail Message Submission Program:/:
gdm:x:50:50:GDM Reserved UID:/var/lib/gdm:
zfssnap:x:51:12:ZFS Automatic Snapshots Reserved UID:/:/usr/bin/pfsh
upnp:x:52:52:UPnP Server Reserved UID:/var/coherence:/bin/ksh
xvm:x:60:60:xVM User:/:
mysql:x:70:70:MySQL Reserved UID:/:
openldap:x:75:75:OpenLDAP User:/:
webservd:x:80:80:WebServer Reserved UID:/:
postgres:x:90:90:PostgreSQL Reserved UID:/:/usr/bin/pfksh
svctag:x:95:12:Service Tag UID:/:
unknown:x:96:96:Unknown Remote UID:/:
nobody:x:60001:60001:NFS Anonymous Access User:/:
noaccess:x:60002:60002:No Access User:/:
nobody4:x:65534:65534:SunOS 4.x NFS Anonymous Access User:/:
ikeuser:x:67:12:IKE Admin:/:
aiuser:x:61:61:AI User:/:
pkg5srv:x:97:97:pkg(5) server UID:/:
oracle:x:100:100::/export/home/oracle:/usr/bin/bash
root@zone1-ngz:/rpool/data# cat /etc/shadow
root:$5$0Em7ga9.$hUlJ79ehKhq9lMDLQyldjPmtGXt1k18mTUgkpd2O7E.:16938::::::
daemon:NP:6445::::::
bin:NP:6445::::::
sys:NP:6445::::::
adm:NP:6445::::::
lp:NP:6445::::::
uucp:NP:6445::::::
nuucp:NP:6445::::::
dladm:*LK*:::::::
netadm:*LK*:::::::
netcfg:*LK*:::::::
smmsp:NP:6445::::::
gdm:*LK*:::::::
zfssnap:NP:::::::
upnp:NP:::::::
xvm:*LK*:6445::::::
mysql:NP:::::::
openldap:*LK*:::::::
webservd:*LK*:::::::
postgres:NP:::::::
svctag:*LK*:6445::::::
unknown:*LK*:::::::
nobody:*LK*:6445::::::
noaccess:*LK*:6445::::::
nobody4:*LK*:6445::::::
ikeuser:*LK*:16938::::::
aiuser:*LK*:16938::::::
pkg5srv:NP:16938::::::
oracle:$5$lk.ETh3z$pLKAXxWuByMdYDuCLJB35RTE8.v8EwfpFr9ImBR6RUB:16938::::::
root@zone1-ngz:/rpool/data#
3. Create an archive of the zone
root@SolA:~# zoneadm list -icv
ID NAME STATUS PATH BRAND IP
0 global running / solaris shared
1 zone1-ngz running /zones/zone1-ngz solaris excl
root@SolA:~# zoneadm -z zone1-ngz halt
root@SolA:~# archiveadm create -r -z zone1-ngz /backup/zone1-ngz_reco.uar
Unified Archive initialized: /backup/zone1-ngz_reco.uar
Logging to: /system/volatile/archive_log.5015
Dataset discovery completey...
Media creation completefor zone(s)...
Archive stream creation completen...
Archive creation completessembly...
root@SolA:~#
4. Create a Kernel Zone
root@SolA:~# zonecfg -z zone1-kz create -t SYSsolaris-kz
root@SolA:~#
root@SolA:~# zonecfg -z zone1-kz
zonecfg:zone1-kz> info
zonename: zone1-kz
brand: solaris-kz
autoboot: false
autoshutdown: shutdown
bootargs:
pool:
scheduling-class:
hostid: 0x1c3db0c8
tenant:
anet 0:
lower-link: auto
allowed-address not specified
configure-allowed-address: true
defrouter not specified
allowed-dhcp-cids not specified
link-protection: mac-nospoof
mac-address: auto
mac-prefix not specified
mac-slot not specified
vlan-id not specified
priority not specified
rxrings not specified
txrings not specified
mtu not specified
maxbw not specified
bwshare not specified
rxfanout not specified
vsi-typeid not specified
vsi-vers not specified
vsi-mgrid not specified
etsbw-lcl not specified
cos not specified
pkey not specified
linkmode not specified
evs not specified
vport not specified
iov: off
lro: auto
id: 0
device 0:
match not specified
storage.template: dev:/dev/zvol/dsk/%{global-rootzpool}/VARSHARE/zones/%{zonename}/disk%{id}
storage: dev:/dev/zvol/dsk/rpool/VARSHARE/zones/zone1-kz/disk0
id: 0
bootpri: 0
virtual-cpu:
ncpus: 4
capped-memory:
physical: 4G
zonecfg:zone1-kz>
zonecfg:zone1-kz> select device 0
zonecfg:zone1-kz:device> set storage=dev:/dev/zvol/dsk/zones/zone1-kz/rootdisk0
zonecfg:zone1-kz:device> end
zonecfg:zone1-kz> select capped-memory
zonecfg:zone1-kz:capped-memory> set physical=2g
zonecfg:zone1-kz:capped-memory> end
zonecfg:zone1-kz> select virtual-cpu
zonecfg:zone1-kz:virtual-cpu> set ncpus=2
zonecfg:zone1-kz:virtual-cpu> end
zonecfg:zone1-kz> commit
zonecfg:zone1-kz> exit
root@SolA:~#
5. Implementation of Pre-requisites:
- Implement Private Link between Global Zone and Kernel Zone.
For this purpose we will set up a etherstub.
This Ethernet will be sliced up into vnics and will be allotted to the Kernel Zones.
root@SolA:~# dladm
LINK CLASS MTU STATE OVER
net0 phys 1500 up --
root@SolA:~#
root@SolA:~# dladm create-etherstub stub0
root@SolA:~#
root@SolA:~# dladm
LINK CLASS MTU STATE OVER
net0 phys 1500 up --
stub0 etherstub 9000 unknown --
root@SolA:~# dladm create-vnic -l stub0 glbstub0
root@SolA:~# dladm show-vnic
LINK OVER SPEED MACADDRESS MACADDRTYPE IDS
glbstub0 stub0 40000 2:8:20:18:35:cf random VID:0
root@SolA:~# ipadm
NAME CLASS/TYPE STATE UNDER ADDR
lo0 loopback ok -- --
lo0/v4 static ok -- 127.0.0.1/8
lo0/v6 static ok -- ::1/128
net0 ip ok -- --
net0/v4 static ok -- 192.9.200.10/24
net0/v6 addrconf ok -- fe80::20c:29ff:feae:e4dc/10
root@SolA:~# ipadm create-ip glbstub0
root@SolA:~# ipadm create-addr -T static -a local=1.1.1.1/24 glbstub0/v4
root@SolA:~# ipadm
NAME CLASS/TYPE STATE UNDER ADDR
glbstub0 ip ok -- --
glbstub0/v4 static ok -- 1.1.1.1/24
lo0 loopback ok -- --
lo0/v4 static ok -- 127.0.0.1/8
lo0/v6 static ok -- ::1/128
net0 ip ok -- --
net0/v4 static ok -- 192.9.200.10/24
net0/v6 addrconf ok -- fe80::20c:29ff:feae:e4dc/10
root@SolA:~#
- Allocate a VNIC from this etherstub to the kernelZone
- DHCP configuration.
We will configure DHCP server in the global zone to provide DHCP IP addresses in the range of 1.1.1.0/24 over the etherstub that we created earlier
root@SolA:# cd /etc/inet
root@SolA:# cp dhcpd.conf.example dhcpd4.conf
Modify dhcpd4.conf as below:
Hash below entries:
option domain-name "example.org";
option domain-name-servers ns1.example.org, ns2.example.org;
- It should look as below
#option domain-name "example.org";
#option domain-name-servers ns1.example.org, ns2.example.org;
- Modify below paragraph:
# This is a very basic subnet declaration.
subnet 10.254.239.0 netmask 255.255.255.224 {
range 10.254.239.10 10.254.239.20;
option routers rtr-239-0-1.example.org, rtr-239-0-2.example.org;
}
# This declaration allows BOOTP clients to get dynamic addresses,
# which we don't really recommend.
- To look as below
# This is a very basic subnet declaration.
subnet 10.254.239.0 netmask 255.255.255.224 {
range 10.254.239.10 10.254.239.20;
option routers rtr-239-0-1.example.org, rtr-239-0-2.example.org;
}
subnet 1.1.1.0 netmask 255.255.255.224 {
range 1.1.1.10 1.1.1.20;
}
# This declaration allows BOOTP clients to get dynamic addresses,
# which we don't really recommend.
root@SolA:~#
root@SolA:~# svcs -a | grep dhcp
disabled 17:44:58 svc:/network/dhcp/relay:ipv4
disabled 17:44:58 svc:/network/dhcp/relay:ipv6
disabled 17:44:58 svc:/network/dhcp/server:ipv4
disabled 17:44:58 svc:/network/dhcp/server:ipv6
root@SolA:~#
root@SolA:~# svcadm enable svc:/network/dhcp/server:ipv4
root@SolA:~# svcs -a | grep dhcp
disabled 17:44:58 svc:/network/dhcp/relay:ipv4
disabled 17:44:58 svc:/network/dhcp/relay:ipv6
disabled 17:44:58 svc:/network/dhcp/server:ipv6
online 22:28:51 svc:/network/dhcp/server:ipv4
4. Publish Repository over a HTTP service

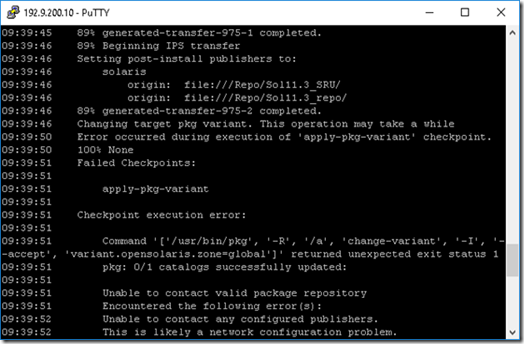

This step is a MUST, because, after an initial copy process, as a part of the installation, kernel zone will configure its pkg publisher and point it to the global zone’s repository.
If the Global zone’s local repository is file/filesystem based, the phase 2 installation of the kernel zone will fail with the below message:
And the kernel zone will be reverted back to “configured state”
To avoid this, an http repository is a must and must be publisher over the same IP that we are using for private connectivity. In our case its 1.1.1.1/24
- Run the below to create a HTTP service for the Repository &/or SRU
root@SolA:~# svccfg -s pkg/server add Sol11_3_Repo
root@SolA:~# svccfg -s pkg/server:Sol11_3_Repo setprop pkg/inst_root=/Repo/Sol11.3_repo
root@SolA:~# svccfg -s pkg/server:Sol11_3_Repo setprop pkg/port=10081
root@SolA:~# svcadm refresh pkg/server:Sol11_3_Repo
root@SolA:~# svcadm enable pkg/server:Sol11_3_Repo
root@SolA:~#
root@SolA:~# svccfg -s pkg/server add Sol11_3_SRU
root@SolA:~# svccfg -s pkg/server:Sol11_3_SRU setprop pkg/inst_root=/Repo/Sol11.3_SRU
root@SolA:~# svccfg -s pkg/server:Sol11_3_SRU setprop pkg/port=10082
root@SolA:~# svcadm refresh pkg/server:Sol11_3_SRU
root@SolA:~# svcadm enable pkg/server:Sol11_3_SRU
root@SolA:~#
- Unset the publisher currently pointing to the file/filesystem .
root@SolA:~# pkg publisher
PUBLISHER TYPE STATUS P LOCATION
solaris origin online F file:///Repo/Sol11.3_SRU/
solaris origin online F file:///Repo/Sol11.3_repo/
root@SolA:~# pkg unset-publisher solaris
Updating package cache 1/1
root@SolA:~#
root@SolA:~# pkg publisher
PUBLISHER TYPE STATUS P LOCATION
root@SolA:~#
- Now, set the publisher to point it to HTTP service
root@SolA:~# pkg set-publisher -g http://1.1.1.1:10081/ solaris
root@SolA:~# pkg set-publisher -g http://1.1.1.1:10082/ solaris
root@SolA:~#
root@SolA:~# pkg publisher
PUBLISHER TYPE STATUS P LOCATION
solaris origin online F http://1.1.1.1:10081/
solaris origin online F http://1.1.1.1:10082/
root@SolA:~#
5. Install the kernel zone from the uar
Kindly note: You may face an error while initiating the “install” as below:
root@SolA:~# zoneadm -z zone1-kz install –a /backup/zone1-ngz_reco.uar
Platform does not support the kernel-zone brand.
zoneadm: zone zone1-kz failed to verify
root@SolA:~#
The workaround for this issue is as below:
- Running virtinfo confirms it:
root@s112test:/dev/lofi# virtinfo
NAME CLASS
vmware current
non-global-zone supported
1. First thing is that you need to be running i5/i7 generation processor that will support nested paging.
2. Shutdown your VM and then go into the container/folder for the VM and modify the .vmx file and add the following to the bottom:
vhv.enable = “TRUE”
3. Save the file and then restart your VM
4. Verify Support with virtinfo:
root@s112test:/dev/lofi# virtinfo
NAME CLASS
vmware current
non-global-zone supported
kernel-zone supported
6. Now, install the kernelzone again from the Unified Archive created earlier.
root@SolA:~# zoneadm -z zone1-kz install -a /backup/zone1-ngz_reco.uar
Progress being logged to /var/log/zones/zoneadm.20160518T095435Z.zone1-kz.install
[Connected to zone 'zone1-kz' console]
Boot device: cdrom1 File and args: /platform/i86pc/kernel/amd64/unix -B install=true -B aimanifest=/system/shared/ai.xml
reading module /platform/i86pc/amd64/boot_archive...done.
reading kernel file /platform/i86pc/kernel/amd64/unix...done.
SunOS Release 5.11 Version 11.3 64-bit
Copyright (c) 1983, 2016, Oracle and/or its affiliates. All rights reserved.
--------------Snip-----------------------------
Preparing image for use
Done mounting image
Configuring devices.
Hostname: solaris
Using specified install manifest : /system/shared/ai.xml
At this time, kernel zone installation is in progress. But you can still login into the zone to see if the IP Address and other parameters has been properly picked up by the zone.
In our case, the kernel zone should pickup 1.1.1.10/24 from the DHCP.
- Let’s check
root@SolA:~# ping -s 1.1.1.10
PING 1.1.1.10: 56 data bytes
64 bytes from 1.1.1.10: icmp_seq=10. time=1298.786 ms
64 bytes from 1.1.1.10: icmp_seq=11. time=298.610 ms
64 bytes from 1.1.1.10: icmp_seq=12. time=10.140 ms
64 bytes from 1.1.1.10: icmp_seq=15. time=0.404 ms
^C
----1.1.1.10 PING Statistics----
16 packets transmitted, 6 packets received, 62% packet loss
round-trip (ms) min/avg/max/stddev = 0.367/268.594/1298.786/518.318
root@SolA:~# zlogin zone1-kz
[Connected to zone 'zone1-kz' pts/3]
Oracle Corporation SunOS 5.11 11.3 March 2016
root@solaris:~# ipadm
NAME CLASS/TYPE STATE UNDER ADDR
lo0 loopback ok -- --
lo0/v4 static ok -- 127.0.0.1/8
lo0/v6 static ok -- ::1/128
net0 ip ok -- --
net0/v4 dhcp ok -- 1.1.1.10/27
net0/v6 addrconf ok -- fe80::8:20ff:fe60:b394/10
root@solaris:~# exit
logout
[Connection to zone 'zone1-kz' pts/3 closed]
root@SolA:~#
So, as you can see above, we are perfectly right in our assumption and the installation will go on as planned.
Preparing image for use
Done mounting image
Configuring devices.
Hostname: solaris
Using specified install manifest : /system/shared/ai.xml
solaris console login:
Automated Installation started
The progress of the Automated Installation will be output to the console
Detailed logging is in the logfile at /system/volatile/install_log
Press RETURN to get a login prompt at any time.
09:59:15 Install Log: /system/volatile/install_log
09:59:15 Using XML Manifest: /system/volatile/ai.xml
09:59:15 Using profile specification: /system/volatile/profile
09:59:15 Starting installation.
09:59:15 0% Preparing for Installation
09:59:16 100% manifest-parser completed.
09:59:16 100% None
09:59:16 0% Preparing for Installation
09:59:17 1% Preparing for Installation
09:59:17 2% Preparing for Installation
09:59:17 3% Preparing for Installation
09:59:17 4% Preparing for Installation
09:59:18 5% archive-1 completed.
09:59:18 6% install-env-configuration completed.
09:59:19 9% target-discovery completed.
09:59:24 Pre-validating manifest targets before actual target selection
09:59:24 Selected Disk(s) : c1d0
09:59:24 Pre-validation of manifest targets completed
09:59:24 Validating combined manifest and archive origin targets
09:59:24 Selected Disk(s) : c1d0
09:59:24 9% target-selection completed.
09:59:24 10% ai-configuration completed.
09:59:25 10% var-share-dataset completed.
09:59:34 10% target-instantiation completed.
09:59:34 10% Beginning archive transfer
09:59:34 Commencing transfer of stream: 98e1015e-06dc-437a-8e76-f3f2a07e183f-0.zfs to rpool
09:59:46 11% Transferring contents
09:59:49 12% Transferring contents
09:59:55 13% Transferring contents
10:00:03 15% Transferring contents
10:00:10 16% Transferring contents
10:00:14 17% Transferring contents
10:00:20 19% Transferring contents
10:00:25 20% Transferring contents
10:00:35 22% Transferring contents
10:00:40 23% Transferring contents
10:00:50 25% Transferring contents
10:00:55 26% Transferring contents
10:00:57 27% Transferring contents
10:01:05 28% Transferring contents
10:01:10 29% Transferring contents
10:01:12 30% Transferring contents
10:01:14 31% Transferring contents
10:01:20 32% Transferring contents
10:01:25 33% Transferring contents
10:01:29 35% Transferring contents
10:01:40 36% Transferring contents
10:01:44 37% Transferring contents
10:01:46 38% Transferring contents
10:01:52 39% Transferring contents
10:01:59 40% Transferring contents
10:02:01 41% Transferring contents
10:02:05 42% Transferring contents
10:02:14 44% Transferring contents
10:02:16 45% Transferring contents
10:02:20 46% Transferring contents
10:02:29 47% Transferring contents
10:02:31 48% Transferring contents
10:02:37 49% Transferring contents
10:02:39 50% Transferring contents
10:02:43 Completed transfer of stream: '98e1015e-06dc-437a-8e76-f3f2a07e183f-0.zfs' from file:///system/shared/uafs/OVA
10:02:46 Archive transfer completed
10:03:20 89% generated-transfer-1006-1 completed.
10:03:20 89% Beginning IPS transfer
10:03:20 Setting post-install publishers to:
10:03:20 solaris
10:03:20 origin: http://1.1.1.1:10081/
10:03:20 origin: http://1.1.1.1:10082/
10:03:21 89% generated-transfer-1006-2 completed.
10:03:21 Changing target pkg variant. This operation may take a while
10:18:36 90% apply-pkg-variant completed.
10:18:36 90% update-dump-adm completed.
10:18:37 90% setup-swap completed.
10:18:38 90% device-config completed.
10:18:38 91% apply-sysconfig completed.
10:18:38 91% transfer-zpool-cache completed.
10:18:59 96% boot-archive completed.
10:18:59 Setting boot title prefix from manifest value: 'solaris-recovery'
10:19:00 Setting boot devices in firmware
10:19:00 98% boot-configuration completed.
10:19:00 98% update-filesystem-owner-group completed.
10:19:00 98% transfer-ai-files completed.
10:19:03 98% cleanup-archive-install completed.
10:19:03 100% create-snapshot completed.
10:19:03 100% None
10:19:04 Automated Installation succeeded.
10:19:04 You may wish to reboot the system at this time.
Automated Installation finished successfully
The system can be rebooted now
Please refer to the /system/volatile/install_log file for details
After reboot it will be located at /var/log/install/install_log
[NOTICE: Zone halted]
[Connection to zone 'zone1-kz' console closed]
Done: Installation completed in 1460.356 seconds.
root@SolA:~#
- Now Boot the Kernel Zone and check it status
root@SolA:~# zoneadm list -icv
ID NAME STATUS PATH BRAND IP
0 global running / solaris shared
- zone1-ngz installed /zones/zone1-ngz solaris excl
- zone1-kz installed - solaris-kz excl
root@SolA:~# zoneadm -z zone1-kz boot
root@SolA:~#
root@SolA:~# zlogin -C zone1-kz
[Connected to zone 'zone1-kz' console]
SunOS Release 5.11 Version 11.3 64-bit
Copyright (c) 1983, 2016, Oracle and/or its affiliates. All rights reserved.
Loading smf(5) service descriptions: 51/51
Configuring devices.
WARNING: fastboot_update_config failed, disabling deferred dump
Hostname: zone1-ngz
zone1-ngz console login: May 18 10:22:30 zone1-ngz sendmail[662]: My unqualified host name (zone1-ngz) unknown; sleeping for retry
May 18 10:23:30 zone1-ngz sendmail[662]: unable to qualify my own domain name (zone1-ngz) -- using short name
zone1-ngz console login: ~.
[Connection to zone 'zone1-kz' console closed]
root@SolA:~# zlogin zone1-kz
[Connected to zone 'zone1-kz' pts/3]
Last login: Tue May 17 20:20:54 2016 on pts/2
Oracle Corporation SunOS 5.11 11.3 March 2016
root@zone1-ngz:~#
root@zone1-ngz:~# df -h
Filesystem Size Used Available Capacity Mounted on
rpool/ROOT/solaris-recovery
15G 1.6G 12G 13% /
/devices 0K 0K 0K 0% /devices
/dev 0K 0K 0K 0% /dev
ctfs 0K 0K 0K 0% /system/contract
proc 0K 0K 0K 0% /proc
mnttab 0K 0K 0K 0% /etc/mnttab
swap 1.8G 1.4M 1.8G 1% /system/volatile
objfs 0K 0K 0K 0% /system/object
sharefs 0K 0K 0K 0% /etc/dfs/sharetab
/dev/kz/sdir/shared@0
4.4G 1.7M 4.4G 1% /system/shared
/usr/lib/libc/libc_hwcap1.so.1
13G 1.6G 12G 13% /lib/libc.so.1
fd 0K 0K 0K 0% /dev/fd
rpool/ROOT/solaris-recovery/var
15G 118M 12G 1% /var
swap 1.8G 4K 1.8G 1% /tmp
rpool/VARSHARE 15G 1.1M 12G 1% /var/share
rpool/VARSHARE/zones 15G 31K 12G 1% /system/zones
rpool/export 15G 32K 12G 1% /export
rpool/export/home 15G 32K 12G 1% /export/home
rpool 15G 35K 12G 1% /rpool
rpool/data 15G 62K 12G 1% /rpool/data
rpool/VARSHARE/pkg 15G 32K 12G 1% /var/share/pkg
rpool/VARSHARE/pkg/repositories
15G 31K 12G 1% /var/share/pkg/repositories
root@zone1-ngz:~#
root@zone1-ngz:~# cd /rpool/data
root@zone1-ngz:/rpool/data# ls -al
total 77
drwxr-xr-x 6 root root 15 May 17 20:23 .
drwxr-xr-x 4 root root 4 May 18 10:19 ..
-rw------- 1 uucp bin 0 May 17 18:06 aculog
drwxr-xr-x 2 adm adm 2 May 17 18:06 exacct
-r-------- 1 root root 28 May 17 20:20 lastlog
drwxr-xr-x 2 adm adm 2 May 17 18:06 log
-rw-r--r-- 1 root root 526 May 17 20:00 messages
-rw-r--r-- 1 root root 0 May 17 20:22 sa
-rw-r--r-- 1 root root 0 May 17 20:22 sandeep
-rw-r--r-- 1 root root 16384 May 17 20:23 sandeep.tar
-rw-r--r-- 1 root root 0 May 17 20:22 sandeep123
drwxr-xr-x 2 root sys 2 May 17 18:06 sm.bin
drwxr-xr-x 2 root sys 2 May 17 18:06 streams
-rw-r--r-- 1 root bin 1860 May 17 20:20 utmpx
-rw-r--r-- 1 adm adm 5580 May 17 20:20 wtmpx
root@zone1-ngz:/rpool/data#
As you can see above, all the data from the rpool has been successfully migrated to the kernel zone.
All other zpool disks now can be configured into the kernel zone.
Upon reboot, the successful kernel zone migration is completed.
Please proceed to Part 3: http://solariscat.blogspot.com/2016/05/migration-of-native-solaris-zone-ngz-to_19.html
Please proceed to Part 3: http://solariscat.blogspot.com/2016/05/migration-of-native-solaris-zone-ngz-to_19.html
No comments:
Post a Comment
